Porsche 911 Common Problems

Porsche vehicles have a number of regular sources for leaking oil. Some of the most common include rear main seal (see below), valve covers, spark plug seals and turbo oil supply line seals. Less common are leaks from the cam seals and scavenger oil pump seals.

Symptom : Oil Drips On Floor Behind Rear Wheels

Valve cover leaks are obvious and fairly straightforward to fix on most models. The valve covers do not have a gasket – instead a liquid gasket sealer is used. The time consuming part is removing the old gasket sealer from the valve cover to ensure a good seal for the replacement.

Symptom : Misfires CEL or Oily Spark Plugs

Spark plug tube seals are also prone to leaking – leaks from the spark plug tube seals can be frustrating. Often, you wont see the oil initially as it’s sealed in by the coil on top of the spark plug. The tube fills with oil and causes misfires by destroying the plug and the coil. If you see oil on a plug or coil, always replace the seals.

The early engines had a plastic tube insert and the later engine features two seals. The upper seal can be replaced when removing the valve cover.  The lower seal leaking is more of an issue and requires removal of the camshafts.

Symptom : Oil Leak Between Engine & Transmission

One of the most common, misunderstood and potentially destructive issues is an oil leak from the rear main seal on the Porsche engine. A leaking rear main seal appears through the bell housing joint between the center of the engine and transmission joint. The leaking seal will quickly destroy a clutch in a manual car if not addressed promptly.

Some caution – vehicles that are stored often display a weep/leak from the seal during storage or at the initial startup in the spring. The seal needs the heat of driving to remain sealed efficiently, so in some circumstances the leak can slowdown or stop during the driving season. Replacing the seal requires the removal of the transmission and in a manual car, replacement of the clutch at the same time is a good choice.

The seal does dry over time and can leak, however, there are other potential issues that could also cause the seal to leak (see Air Oil Separator below). Causes of the seal failure should be checked thoroughly by a competent shop before you proceed to replace the seal.

Symptoms : Smoke From Exhaust, Oil In Intake, Rear Main Seal Leak

Bad rear main seal or something else causing the problem?

As an integral part of the emissions system, the Air Oil Separator (AOS) is designed to extract oil from gases in the crankcase. The oil is recycled to the sump and the gas is sent through the combustion path to be burnt and cleaned by the catalytic converters. The AOS has caused numerous issues on Porsche engines.

As the membrane in the AOS fails, oil is sucked into the air intake.  Initially this can show up as a check engine light for fuel adaptations and the oil can be deposited on the o2 sensors causing emission faults.

Of course, once it fails completely, the resultant huge clouds of white smoke are fairly obvious. At that point, it is clear what needs to be done.  However, replacing the aos sooner rather than later can be a good precaution against other failures.

A failing air oil separator (aos) is the likely cause of rear main seal failure and oil leaks, as it is in other VAG cars. Crankcase vacuum exceeds the normal range in the engine under heavy acceleration and sucks in air damaging the rear main seal. This is commonly seen on Audi engines as well.

A failing aos also causes too much oil to pass into the intake and will force the engine management to adjust fuel mixtures to compensate. The changing mixture can cause over fueling and lead to other more significant problems – See smoke at startup below.

For cars that go to the track on a regular basis, a Porsche Motorsport AOS upgrade is highly recommended. The upgraded aos features a doubling in size of capacity for scavenging and is less prone to sucking up oil during high speed cornering.

Symptom – Puff of Smoke at Cold Start

A quick puff of smoke as you start a cold engine is not uncommon, especially on the Porsche flat six engine. There are many theories and various thoughts as to why this happens – none are proven. What we do know is that re-built engines rarely display this startup smoke, so it’s definitely a sign of wear and tear – and it does progressively get worse with mileage. Vehicles that have sat for a while, such as winter storage, often blow more smoke at their first start than subsequent ones.

Extended smoking at startup is more of an issue. Again, there could be a number of reasons why this happens, but it is usually a sign of wear in the cylinders. See cylinder scoring below.

Sometimes, replacing the fuel injectors can help this problem. Worn and leaking fuel injectors cause fuel to sit in the intake path while the car is parked. The fuel leaking is not enough to cause starting problems, but it can be responsible for the smoke and wear in the cylinders – the excessive fuel heading into the cylinders washes oil off the cylinder walls causing wear on the piston rings and liners.

The smoke at startup can also be caused by a air oil separator (AOS) that is going bad but not completely failed yet.

Symptoms – Knocking Noise, Oil Consumption

The M96 and M97 engines are famed for cylinder scoring – deep gauges in the cylinder liner, usually associated with a knocking noise and eventually catastrophic engine failure. The root cause of this issue is open to discussion, however, wear in the piston rings and liners causes the piston to wobble. The wobble occurs at the bottom of the stroke and results in the piston skirt dragging against the cylinder wall thereby scoring the liner.

More recently, this issue has also been seen on the later engines. An early telltale sign can often be one exhaust tailpipe being more sooty black than the other.

The sound of this problem is not a tick like a bad lifter, it’s more a rhythmic knock and usually shows up first on the passenger bank of the flat 6 engines. Wear in the piston rings and the liners of the cylinder have caused the piston to wobble. The wobble occurs at the bottom of the stroke and causes the piston skirt to drag against the cylinder wall causing scoring of the liner. The rhythmic knock is the piston changing position at the bottom of the stroke and hitting the liner. In many cases, even with the head off the engine, the worst scoring cannot be seen until the piston is removed – it can be way down at the bottom of the cylinder.

The only solution here is a replacement engine or rebuild and re-lining of the cylinders. A competent Porsche repair shop can help you through this process. Results from this can be fun – we made 425HP from a 4.0L engine rebuilt from a broken 3.6L – however, you’re going to need a $25K budget to start the project!

Symptoms : Metal Shavings In Oil

M96 engines fitted to the 996 and early 997 can have issues with a bearing at one end of the intermediate shaft. The shaft connects the two ends of the engine timing gear. At one end the shaft drives the oil pump and at the other, finishes in a sealed bearing.

There’s no doubt that a cheap sealed bearing of the kind that sits at the end of the intermediate shaft on an M96, has no place in a performance engine. Porsche subsequently redesigned the engine to eliminate an IMS bearing after clearly identifying its potential for weakness.

However, the hype generated by people who have to gain from identifying the problem with this bearing and the real world results don’t quite match.

Yes, be clear, the IMS bearing is a weak point and it will fail. However, in the real world less than 5% have actually failed or can be directly linked to an engine failure. Porsche shipped approx. 77,000 vehicles to the USA that could have a bad IMS bearing. Even the most enthusiastic counting of IMS failures produces a total around 3500 or less than 5%. This means there are more than 73,000 vehicles out there that haven’t had the problem yet or have been retrofit with a newer bearing. Of course, that number excludes the cars driven into a ditch, wrapped around a lamp post, rolled off a cliff or set fire too, but you get the point. There are significantly more good M96 engines than bad ones.

Most competent shops will recommend replacing the bearing at least as a safe guard against a future failure.

Symptoms : No Crank or Slow Crank

Porsche 911s are often garage queens and not driven as much as many other cars – rarely are they daily drivers. During any down period the car will continue to use some battery power – in Porsche’s case, usually more than would be expected from similar vehicles. This can very quickly lead to a flat battery.

Losing battery power resets a number of important systems and can cause unnecessary headaches with everything from emissions to electronics and comfort items such as cabrio roofs. We recommend you use a battery maintainer any time you store or do not drive the car for an extended period – 2 weeks or more. Leaving the battery to drain completely usually shortens the life of the battery as well.

A flat battery on a 911 can be a pain. To access the battery or engine compartment requires battery power for the electric hood release – not easy with a flat battery. If this happens, use the following procedure:

• Open the left door
• Connect an external battery power source to fuse C3 in the interior fuse panel
• With the door open, flip the door latch mechanism to the closed position
• Use the key to lock and unlock the door
• The front hood release should now function

Symptoms : CEL Engine Runs Well

There are many potential causes of a Check Engine Light on Porsche 911 vehicles and it’s important to read the codes or have a repair shop do that for you to assess the faults.

One of the most common causes for a CEL on the older M96 engine is a failure in the O2 sensor and mass airflow systems (MAF). Commonly, the MAF begins to fail and delivers the engine management with inaccurate information regarding the flow of air into the intake.

This causes the engine management to adjust fuel mixtures using a set of parameters which were likely set too broadly by Porsche initially. The resultant adjustments cause the front O2 sensors to report faults and often lead to them failing completely. The fault codes will suggest faulty O2 sensors. This results in many folks replacing the front O2 sensors in the hopes of solving the problem, only to discover that within a few hundred miles the check engine light is back on.

The problem is actually caused by the MAF failing and by owners blindly believing the reported engine faults. The faults are an indication of the symptoms and not the route cause. The recommended solution is to replace both the MAF and front O2 sensors at the same time. Always use the original Porsche parts – the aftermarket versions do not work. Cleaning the MAF rarely fixes this problem.

Symptoms : Engine Runs Rough or Lacks Power – Flashing CEL

Misfires can occur at any time and require diagnosis to identify which cylinders are misfiring and why. Common causes are worn spark plugs, cracks in ignition coils and oil leaking past the spark plug tube seals.

The ignition coils on the M96 and M97 engines have been updated multiple times.  The original coils were prone to cracking and were replaced by a more substantial version. Low mileage older cars will commonly still have the older style coils and it’s best practice to replace them all to the newer version even if only a single coil has failed.

Fuel injector malfunction can cause a misfire, however injector failure of this nature is not so common on the Porsche flat 6 engines. More common is a failure in the wire or plug connected to the injector. These wires become brittle and can crack, especially when being moved around for routine maintenance.

Symptoms : Engine Overheats and Loss of Coolant

Each cylinder bore in the engine case half of the M96 and M97 are lined with a one-piece sleeve or liner. A crack in the cylinder liner of the engine can show up in a number of ways from overheating, loss of compression to oil consumption. Often, the problem is not simple to diagnose because the cracks can take a long running period before they start to work their magic.

Here’s a first hand example. Customer tows a 997 to us. A coolant hose had exploded – one of the main pipes leading to the front radiators. Customers says the car didn’t over-heat, the hose just exploded. We replaced the hose, refilled the coolant, test drove the car for 30 mins – everything was perfect.

The customer calls the day after picking up the car and driving 1-hour to get home – the car flashes low coolant light and we establish that all the coolant has disappeared from the reservoir. Of course, customer blames us for not putting enough coolant in the engine and with the customer always being right, the car is towed back at our expense.

We scanned the car – no overheating and no faults or events were recorded. We know we filled the coolant to the correct level initially so, we refilled the coolant, ran the engine and drove the car – it’s perfect. Where did that coolant go?

Suspicious of a cracked liner, we decided to let the engine run at idle while we ate lunch. The engine ran perfectly at a steady temperature for approx. 55 mins. Then all of a sudden, it rapidly started to get hot, a coolant burning smell appeared in the exhaust and the coolant level started to drop quickly.  Once it had cooled down, we could repeat this perfectly – every 55 mins of running and it would overheat and consume the coolant.

Long story shortened – once we had dissembled the engine, we found a series of micro fractures in the cylinder linings. It took nearly an hour of running for these cracks to open enough for the engine to start consuming the coolant. The engine required a full rebuild and liner replacement to solve the problem.

Symptoms : Pre-Start Clutch Pedal Difficult To Push Down

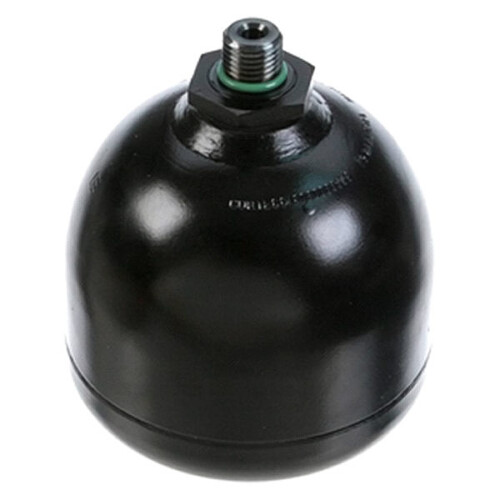

This is a common problem on earlier 911 Turbos with manual transmissions.

If you experience a very heavy clutch pedal before you start the engine, the common and likely cause is the pressure accumulator. This is a device designed to retain the hydraulic pressure necessary to operate the clutch after the engine has been stopped. In many circumstances the device will begin to leak the pressure back into the system and not function when called upon prior to startup.

It is common practice to replace the clutch slave cylinder at the same time as replacing the pressure accumulator. The slave cylinder is often damaged or at least has its expected life shortened after the accumulator has failed.

Symptoms : Low Coolant Light On or Flashing

In general, the Porsche 911 cars are pretty reliable for their cooling systems. There are however, a number of weaker areas that can sometimes cause issues.

Coolant Reservoir Leaks

One of the most frustrating leaks is a small crack in the coolant reservoir. This happens on all models and usually shows up as a coolant smell while driving with minor loss of coolant over a period of time. Eventually a minor crack will split wide open and empty the reservoir rapidly – this is to be avoided if at all possible. Replacing the reservoirs on 911 models is not expensive but can be a pain – look at the location of the reservoir in the 911 engine bay and notice you need to extract a fairly large object through a very small space!

You should never loose coolant while driving – so if your coolant level does decline over time, find the cause and solve it asap.  Under worst circumstances this could be a sign of a cracked cylinder liner.

Radiators

On the 911 in particular, the radiators are low down and exposed to incoming road debris. Small holes in the radiator can be difficult to see without removing the front bumper and searching for the telltale white coolant stain. Often the holes are not caused by debris hitting the radiator but are due to deterioration of the seals in the corners of the radiators.

Leaf and road debris is not easily cleaned out from the depths below the bumper and can hold moisture against the radiator causing metal corrosion. We recommend cleaning the radiator areas regularly or adding aftermarket screens to the front of the openings to reduce the problem.

Hose Connectors

The newer models have the push-click-lock type of hose connector – no clamps. These are easy to get on and off but have a nasty habit of becoming one-time use if not removed carefully. If you have to remove a hose with this type of connector ensure that when replaced it does not leak under extreme pressure. Of course, if it does, you need to replace the complete hose and not just the connector.

Water Pump Failure

Water pumps fail regularly.  This is not news, but some solutions have been over hyped.

The bearing in the water pump supporting the shaft wears and the shaft starts to wobble. This develops into a knocking noise sometimes accompanied by a coolant leak. The plastic impeller can degrade rapidly and spread flow-blocking plastic throughout the cooling system. Getting plastic debris out of the front radiators is difficult and time consuming.

The water pump is simple to reach under the car and checking the amount of play on the pulley is relatively simple. With the engine running, observe the pulley and see if there is any sign of wobble.

The hype – get rid of the original plastic impeller pump and put in a water pump with a metal impeller. This seems like a solid idea, right up to the point where the bearing fails again. Now the metal impeller will wobble and score the inside of the cylinder block causing permanent damage. In some cases, the damage is so severe that the case half would need to be replaced. Additionally, metal flakes are now floating around the coolant system.

We recommend sticking with the plastic impeller and inspecting the pump on a regular basis. It’s easy to see when the engine is running and you just have to watch for wobble. If in doubt, the work to replace it is quite simple and should be considered a 40K or 4 year item of preventative maintenance.

Symptoms : Oil Residue in Coolant Reservoir – Peanut Butter!

Under the worst circumstances, oil in the coolant can look like peanut butter in the coolant reservoir. It typically starts out as an oily film and continues to get worse over time. There are many potential problems associated with this sign – oil could be getting in to the coolant from a blown head gasket, from a crack in the cylinder head, a crack in a cylinder liner or the oil cooler. For sure, coolant in the oil and visa versa is a bad sign, the question is how lucky will you be as to where the problem is? Diagnosing the problem often requires multiple steps.

The simplest place to start is by replacing the oil cooler – this is the easiest and least expensive item to tick off the list of possible problems. Generally the likely issue is caused by the coolant and oil swapping places through the oil cooler.

Assuming the the oil cooler is the issue, it sits beneath the intake and is exchanging heat between oil and coolant at a barrier level. When the barrier separating the two fluids inside the cooler breaks down, fluid can be exchanged – sometimes in both directions. The result is oil in the coolant and worse, coolant in the oil.  Coolant in the oil is a quick way to needing a new engine, so it’s critical to diagnose this problem asap.

If after replacing the cooler, you need to go to the next stage, having a new oil cooler is not the end of the world and at least eliminates the cooler as the source immediately.

If replacing the cooler does not solve the problem, the remaining options are expensive and likely require major engine surgery. This is where a specialized repair shop can help to quickly and cost effectively get to the route cause of the issue.

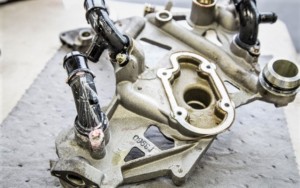

Symptom :  Initial Minor Coolant Leak Below Engine

Porsche decided to fit the 997.1 Turbo engine with plastic water pipe outlets. The seals between the plastic pipe and the engine block degrade quicker than expected. As Porsche experienced on other models, plastic coolant pipes are potentially problematic.

Replacing the seals in not a simple job and requires specialized skills – engine removal is the preferred method. See our guide to independent Porsche repair shops for help.

Many owners experiencing this problem have chosen an upgrade path. This involves replacing the plastic pipes with metal ones. This helps to prevent a recurrence of the same issue with the plastic pipes and in addition, strengthens what could be a potential weak spot for the future. Definitely a selling point for vehicles that have had the upgraded metal pipes fitted.

Symptoms : Engine Runs Well Up To 4K RPM Then Misfires

This is a problem that many so-called experts will tell you doesn’t exist. However, we have diagnosed and fixed this issue on 911 and Boxster engines a number of times.

The engine runs perfectly below 3K rpm. Revving the engine above 4K rpm causes a misfire to be reported on a single cylinder and engine management shuts off the cylinder. Consequently, below 3K rpm the engine now runs rough until the fault is cleared. Once the fault is cleared the engine runs perfectly again below 4K until the fault is triggered again.

Typically, this happens to a single cylinder repeatedly. Initially, this sounds like a failing spark plug or coil and can indeed be solved by replacing them, if you’re lucky. However, if you have replaced both the coil and the plug and still have the same problem, there is another solution.

The Porsche flat 6 engine (in particular the M96) has a two-stage intake lifter that fails. As you accelerate the engine rpm, the lifter expands to increase valve lift. The lifter commonly breaks and during the second stage of valve lift, which occurs above 4k rpm, it does not function correctly – this results in a misfire on a single cylinder.  The engine management then shuts off the cylinder until the fault is cleared.

This problem can be solved by replacing the lifters on the particular cylinder on which the fault occurs – although replacing all the lifters on that particular bank, whilst expensive, is probably the recommended solution. If left alone, the lifter can stick causing a permanent misfire or worse.

In a couple of customer cases that we’ve seen, the stuck lifter went on to break the intake camshaft destroying the bearings in the valve cover. We also experienced a Boxster engine where the lifter had been ejected out of the valve cover, leaving a nicely sized hole and very oily mess. In both these cases the engines were repaired and functioned perfectly afterwards.

Replacing lifters requires specialized skills and timing knowledge – we recommend you seek the help of an independent repair shop.

Symptoms : CEL and Lack of Power

The M96 and M97 engines found in the 911 have variable valve lift and timing. Part of the variance is controlled by the cam solenoids located in the valve covers. The cam solenoid is an electromechnical device that redirects oil pressure as per the demands of engine management. The increase in oil pressure enables valve lift adjustment.

Problems with these solenoids are often the cause of a CEL and a lack of power under acceleration. Scanning the engine management system should provide codes which identify the solenoids that are failing and replacing them usually solves the problem.

Some of the cam solenoids can be replaced without the removal of the valve cover; however, others do require the valve cover removal and are more intense work. We recommend inspection of the wiring to the solenoids before replacing them – these can become corroded on older cars due to their location.

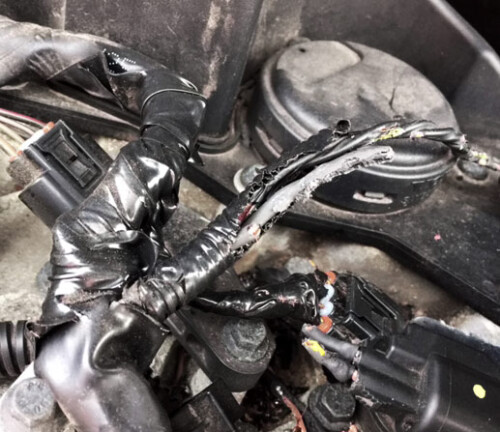

Symptoms : Unusual Electrical Behavior

In some regions, such as the Midwest or Northeast, cars are often stored over the winter months and not driven much until all that nasty white snow stuff disappears. However, the fact that you have your car tucked away in a warm, clean and perfect garage does not mean that its is alone!

Our small rodent friends that we share this planet with, are seeking out the exact environment you have created for your Porsche storage. Small rodents are experts at finding a safe place and hiding beyond your view.

What Looks Good To A Rodent?

The cabin air filter makes the perfect place for a warm nest – when was the last time you looked in there? Also, the center of the engine, right below the intake, is a perfect place for the safe consumption of food. It’s supplemented by wires that are coated with a plastic made from corn and on cold, long dark winter nights when food is in short supply, that wire seems pretty tasty. Of course, you are blissfully unaware of all of this until the car displays strange engine faults and a musky odor from the air vents!

On one occasion, we removed a whole mouse family from a 911 cabriolet that had eaten the wiring harness, destroyed the carpets, (top stored down) and had eaten most of the cabriolet top. The lady owner described rough engine running, an alarm that sounded for no reason and an odd smell while she drove it to us with the top down! The tech inspecting the car was confronted by at least 10 mice that scattered in all directions!

Take rodent precautions even if you are certain you don’t have that problem.

Symptoms: Gear Shifter is Floppy, Inconsistent or Stuck In Gear

911 models fitted with a manual transmission can often experience problems with the gear shifter mechanism.

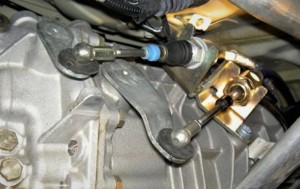

The gear shifter operated by the driver, is connected to the transmission by two cables. Over time these two cables become worn and the result is a sloppy gear change, missed gear or a transmission that refuses to come out of the gear selected.

There’s lots of potential for these two cables to have issues at either end. At the transmission end the cables can break, the small connectors on the end of the cable come off and they can degrade with exposure to the elements. At the shifter end, the cables can become notchy, worn or stretch.

There is adjustment in the cables, however the original cables have been improved and we recommend replacing them. Missing a gear through a worn shifter cable is a recipe for disaster and can lead to serious engine or transmission damage.

Upgraded versions of the cables typically produce a crisper and better feeling gear change. The movement or throw on the 911 shifter has always been a little long. While cable replacement work is underway, it’s a great time to install a short throw shifter to replace the factory version.

Symptoms : Gear Shift Pops Back To Neutral

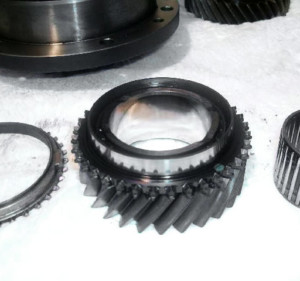

Several Porsche transmissions experience a ‘2nd gear pop out issue.’  This is frustrating and dangerous. It can also lead to miss-shifts and engine over-revs if not addressed promptly.

A one two shift feels good until you let the clutch out and the transmission pops into neutral. It’s simple to miss this and hit the gas expecting the gear to be engaged – engine revs soar, you go nowhere and anyone else in the car thinks you don’t know how to drive a manual trans!

There are a couple of ways to address this issue depending upon the transmission condition. Essentially, inside the transmission the op-sleeve and dog ring have been damaged. The Op-sleeve or dog ring damage occurs when the mating teeth of both parts are worn to the point where they will not engage each other or will not stay engaged after a shift. This damage can occur when the synchros wear out or when ‘speed-shifting’ while racing or more commonly, when shifting while the clutch is not fully disengaged.

This problem can be solved by replacing the op-sleeve with an improved version. However, if the wear is severe enough, a complete replacement of the op-sleeve and the dog ring may be necessary. In either case we always recommend the expertise and advice of the folks at GBox for manual transmission repairs.

Symptoms: PDK Failure Light, Rough Gear Changes, Transmission Faults, Emergency Transmission Run Warning on Dash

The Porsche-Doppelkupplungsgetriebe – which translates to Porsche double-clutch transmission or PDK – now that’s when you really need an acronym! A number of Porsche 911 owners have experienced failure of the PDK transmission.

The PDK is an automated manual transmission. Two units matched together – a manual transmission rear section and automated dual clutch front section. The manual transmission rear section is very solid and reliable. Most issues occur with the electronic and hydraulically controlled clutch section at the front of the transmission. Physically, the PDK is a ZF transmission unit that has been around for a number of years. VAG took multiple versions of the transmission and personalized them for their various car ranges. Porsche adapted the software and labeled their version PDK.

There are a number of ways in which the PDK in the 911 can fail. Most show up as a collection of warning lights on the dash and an eventual refusal to do anything. The only viable solution for most people is the replace the PDK – this is very expensive. However, much of the need for replacement of the PDK comes from a lack of understanding, unavailable parts and an unwillingness to dig deep.

Components and Failures

Transmission Control Module – TCM

The connection to the car and communication of instructions to the transmission, come from an external module called a transmission Control Module (TCM). While this rarely has issues, it can become confused and has been the subject of a number of software revisions. Re-flashing the TCM doesn’t usually solve problems, but ensuring you have the latest software revision can’t hurt. This is where diagnostic faults are stored.

Mechatronic Unit – Valve Body

The TCM sends instruction to the Mechatronic unit or valve body inside the transmission. The Mechatronic unit is a complex series of electronics, hydraulic valves and sensors. These devices are managed by a control module attached to the Mechatronic unit. This is the system which enables gear changes and controls the transmission functionality.

The Mechatronic unit is a common failure point for this type of transmission. In 2009, VW recalled 53000 of them – so there have been many issues in the past. Problems with the Mechatronic unit vary, but commonly include failure to select gears, rough gears changes, etc. The physical components of the transmission are robust, so this unit is often the most economical place to start for most issues.

Sensors

Connected to the Mechatronic unit are a number of sensors throughout the transmission. These determine the operating conditions within the transmission. For example, the temperature of the fluid, the rotational output speed, hydraulic clutch pressure and movement of gears selectors. Failure of these sensors is very common. Early on, Porsche routinely replaced the wiring and trans temp sensor in most of the PDKs.

However, the problem did not go away and has re-occurred on the same transmissions further down the road. The temp sensor problem can show up on almost any model with a PDK.

Clutch

The clutch pack has proven to be very robust and generally does not fail with normal use. Over extended mileage this will become a wear component that will need to be replaced. The failures of the clutch that have occurred, are usually on performance enhanced engines delivering too much torque for the clutch plates. At higher torques, the clutches slip resulting in highly accelerated wear and early failure.

Why do I need to replace the PDK?

The PDK transmissions in the later cars are very complex and the technology involved is a closely guarded secret. Technicians at Porsche are not trained to dissect the transmission and make repairs. They will replace the Mechatronic unit, but often they just replace the transmission as a whole. The components such as the Transmission Control Module (TCM) and the Mechatronic Unit or valve body inside the transmission are often unavailable as parts outside of the Porsche workshop.

The manufacturers do not want it taken apart and it’s often described as a “sealed PDK”. The result from faults is often a new PDK, when in reality, an internal component swap would likely save the whole unit from being replaced. While there is a lot of complex “stuff” in there, the physical components typically don’t break. So, being forced to lash out $12K to $15K for a new PDK, in our mind, is often caused by an unwillingness of people to take the thing apart!

Can You Get Creative?

Creative can often translate to money saving. Removal and disassembly of the PDK is not complex. However, access to parts and the need for a PIWIS to re-initialize the PDK are barriers for the DIY enthusiast. There is an excellent article here that provides good background, examples of the work and videos of the internals of the transmission.

Having experienced a PDK problem on a vehicle we owned, we got creative. Based on issues with other transmissions, such as the Mercedes Benz, commonly known for valve body failure, we were convinced our issues lay in the physical part of the Mechatronic unit. Short version – we got a new Mechatronic unit from Audi, replaced the electronics with the original unit from the Porsche, flashed the TCM to match new software levels and hey presto, a perfectly working PDK!

If you have PDK problems and want to try something creative before shelling out for a new unit, you’ll need the help of an expert independent Porsche repair shop.

Symptoms : Exhaust Rattle Under Acceleration

Many of the older 911 models are starting to experience failure of their catalytic converters and mufflers. In many cases, the main exhaust header pipe leading to the cat converter will crack and fail completely.

Initially, you’ll start to notice a rattle back there. This is caused by the muffler or the cat or both coming apart internally. While annoying, it’s also potentially destructive – a partial blockage in the exhaust can cause the engine to not run or worse, it will cause immense heat to build at the blockage point. Seeing a catalytic converter glowing bright orange under the bumper of a 911 is quite disconcerting! This has car fire written all over it!

The disintegration of the catalytic converter typically causes a check engine light with codes associated to converter inefficiency. This means you can’t pass the emissions test and in some states that means not driving the car at all.

The replacement parts from Porsche fall into two categories – 1. ridiculously expensive or 2. not available.  The solution is an aftermarket exhaust that fits your budget.  See our performance parts for some sensible suggestions to replace the cat or muffler sections on your 911. In addition, many repair shops also have imaginative solutions for solving these issues.

Symptoms: Top Wont Move or is Lopsided Going Up or Down

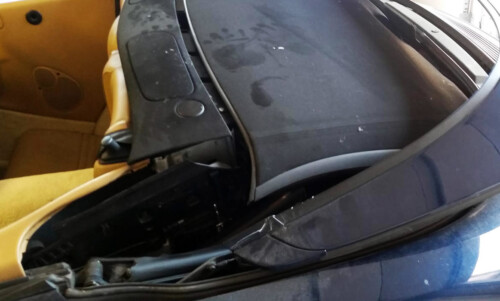

All of the cabriolet tops experience issues at one time or another. These vary from the degrading of the rear window to the unbalanced or lopsided opening and closing.

The window is easy – a good automotive upholstery or top center can replace that old, tired plastic rear window very economically.

The other issues with the top that concern opening and closing, usually have a simple cause – first, the older Porsche 911 received a revised set of motors and drives to cure the most common problems. Usually, this means you’ll have to replace the entire drive system, as the newer versions are not compatible with the older components.

Secondly, the bushings on some of the support arms fail over time and this causes the common lopsided effect during a closing or opening procedure. This is a relatively inexpensive fix by replacing the support arm.

Diagnosing Cabriolet Top Malfunction

While the opening and closing of the top involves a number of components and can seem complex, in reality, the top movement is quite simple. There are a series of steps from the press of the button through to the completion of the procedure. If a step is not completed or will not operate, the top will not open or close correctly. Simply follow each step and make sure the step is functioning correctly.

A note on storage – don’t store the car with the top down. The top tends to shrink and after a few years will not stretch enough to reach the closed position. Always store the car with the top up.

Symptoms: Lift The Lid and It Falls Down On Your Head!

This is very common and very annoying for the person with their head stuck in the engine bay looking for something.

The hydraulic struts on either side of the hood or lid fail over time. This is annoying but also dangerous – the latch on both the hood or the engine lid can give your head a nasty blow if it falls down unannounced.

Replacing the struts is simple and they are available online at low cost. You’ll have a much better relationship with a repair shop that works on your car if you fix these!

Symptoms: Warm Air From AC or Loss of Refrigerant Over Time

If your AC system blows warm air, the most common issue is a lack of refrigerant. Over time the refrigerant from the AC system will find its way out of the hoses and joints. If, however, you refill the system and sometime later the system is again low on refrigerant, there is clearly a larger than normal leak.

Leaks can occur at any section joint or hose, however, one of the most common and missed places for the leak is at the lower corner of the front condensers.

Debris from leaves and road dirt can build up tucked in the extreme lower corner of the condensers of the 911. The debris can hold moisture and degrade the aluminum to point were a hole can appear. This is almost impossible to see or clean out without the bumper being removed.

The refrigerant leak often goes undetected even to a sniffer without the debris being cleaned away. Check this thoroughly before making any other assumptions. The AC compressor for example, rarely has issues and a low refrigerant situation can prevent the compressor from engaging.

Symptoms : Various Electrical Systems Disabled

If your battery has gone flat or required a change, you may experience some of these issues.

On some models, swapping out the battery can cause the car to go into “delivery mode.” This is the mode used for shipping the car from Germany. Delivery mode ensures that certain electrical systems like seat warmers, windows, home link, and higher driving speeds are disabled. To complete the installation of a new battery you need a Porsche diagnostic device to “deliver” the car or complete a “handover” into normal mode.

Loss of battery power on cabriolet models can cause the windows to become out of step with the doors. Opening the doors should lower the windows slightly, to enable easy access. Power failure can cause this function to go away and enable the re-learning of the window position function. Again, this requires a reset via the handover function using a Porsche diagnostic system.

Cabriolet Windows Out of Step With Door Open

If the windows on a cabriolet model get out of step with the door opening condition and no loss of power has occurred, then another issue is the likely cause. Typically, this problem is caused by the activation of the door handle not being seen by the window mechanism.

There are a number of potential ways this can fail and it is necessary to follow a procedure to isolate the cause. Go through the functionality of the door and window in question from locking to unlocking, from open to close from both inside and out. Commonly, this will result in narrowing down the problem to a micro switch in the door handle or lock mechanism.

1. Window does not drop when opening the door from the inside: This is usually caused by the inner door handle micro switch malfunctioning.
2. Window does not drop when opening the door from the outside: This is usually caused by the outer door handle micro switch malfunctioning.
3. With the door open, the window goes back up when you release the door handle, making it very difficult to close the door with the glass all the way up. Alternatively, the window does not drop when using either the inside or outside door handle: This is usually caused by the door latch mechanism micro switch.
4. When operating the convertible top, neither windows drop: This is usually caused by the convertible top latch micro switch.
5. If a window does not drop enough and you can push down the window the extra travel before stopping, the typical cause is the window regulator.

Other Interior Electrical Misbehavior

On occasion, 911 models will exhibit strange and seemingly random electrical misbehavior of interior systems. This could be interior lights staying on, air bag faults, seat malfunctions, etc. Often this can be traced back to a single control module. Porsche placed the module that controls interior settings under the drivers seat.

Due to the location and proximity to the driver door and window, this module can sometimes become water damaged  – especially on cabriolet models. Once the module has got wet, it will often take time to slowly corrode and produce strange electrical faults or misbehavior.

If you left the top down in a shower, had the driver window open when it was raining or live in a climate where significant rain could enter when the driver door is open, you are a good candidate to have this problem.

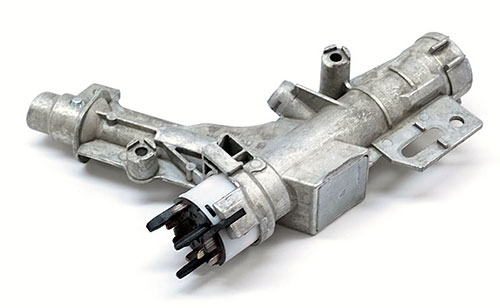

Symptoms: Key Stuck in Ignition or No Start

This is a common failure on the older 911.  Turning the key will not start the car or the key has become stuck in the ignition switch.

This problem is typically caused by a failure in the ignition switch mechanism. Replacing the electrical portion of the switch is fairly straight forward and typically solves the no start problem immediately.

However, on some occasions it may be necessary to replace the mechanical portion of the switch as well. This is a little more involved and requires some additional skills. We’d recommend a repair shop tackle this problem for you.

Key Failure

The ignition key communicates with the car during the starting procedure. The key includes a small electronic transmitting device that is matched to the car and a battery to power it. If the key fails to open or lock doors and will not start the car, replace the battery in the key first, paying particular attention to the orientation of the original battery.

On some occasion it may be necessary to replace the internal electronics of the key or the whole key itself. This can be done by some third party repair shops with the right access to Porsche systems, however, because this is a security device it may be necessary to visit your local dealer.

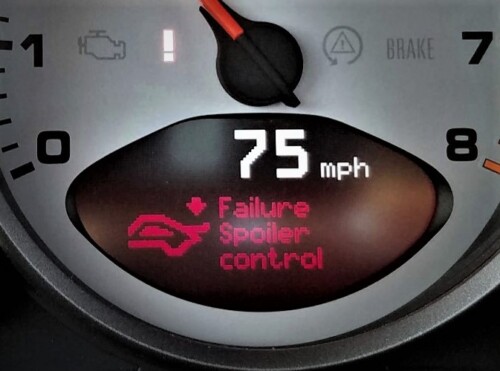

Symptoms: Rear Spoiler Lopsided or “Failure Spoiler Control” on Dash

It’s very cool to have a spoiler that raises and lowers based on speed, however, failure of this system can be expensive. If you experience a lopsided spoiler or one that one will not raise or lower accompanied by a message on the dash indicating a failure of spoiler control, then you enter the world of rear spoiler failure.

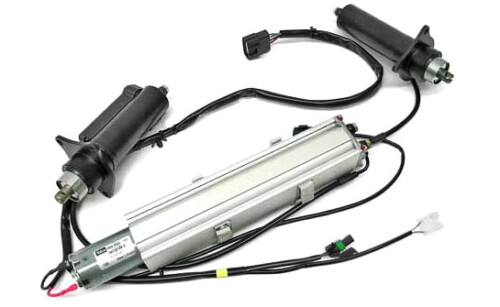

Commonly, the hydraulic actuators for the rear spoiler will fail causing the lopsided or failure to raise faults. This is very common on the turbo models. There are a number of possible causes for this issue but the most common is a failure of the hydraulic rams that raise and lower the spoiler.

There are some repair kits on the market and while Porsche says the system is not serviceable, many good shops have found ways around that to save you money.

Replacement of the parts can be expensive and time consuming, and typically the repairs are not lifetime. The same issues will reoccur at some point in the future unless the hydraulics are replaced with a third party electric ram designed to eliminate the original design flaws. You can find our favorite replacement here.

Symptoms: Exhaust Flap Failure or Heater Shut Off, etc.

The vacuum solenoid or change over valve has been an issue on all the 911 chassis.

The device is designed to direct engine vacuum to effect a mechanical change when requested to by an electrical control unit e.g. open a vent, change the position of an exhaust flap, redirect hot air from feet to screen etc.  Likely systems effected include:

1. Air Cleaner Flap
2. Acoustic Simulator
3. Heater Shut-Off Valve
4. Exhaust Flaps
5. Coolant Shut-Off Valve on Engine Bypass Circuit
6. Tuning Flaps
7. Shut-Off Valve on Heat Exchanger for Gear Wheel Set Oil
8. Shut-Off Valve for Clutch Fluid Heat Exchanger (PDK ONLY)
9. Fuel Tank Vent Valve

Porsche has used the COV in many circumstances throughout the 911 chassis, so if you have a failure related to a mechanical device controlled by vacuum, look for a failure in the COV solenoid in the system first.

Most recently, the 991 cars have had all of their COV solenoids replaced in a maintenance campaign.

Symptoms: Warning Message Oil Level Too Low or High

If you experience an oil level too high or too low message, be careful. First, there is no dipstick – brilliant idea most of the German car manufacturers have implemented. The oil level is measured electronically for accuracy. This is awesome, assuming the electronic measurement is accurate or is at the very least telling you the truth. There is no manual backup of the tried and trusted dipstick – so did you overfill or under fill? Or do you have a faulty sensor?

You have to be sure of which one before you take action. The only way to be sure is confirm the amount of oil in the engine by draining and measuring. We’ve experienced an oil reading that went down when we added a quart! Don’t be surprised if the oil level sensor is not telling the truth but, make sure you are certain that the oil level is correct before ignoring the sensor and replacing it.

Oil Level Top Off

The Porsche engines will naturally consume oil while you drive. Different driving styles and conditions will cause oil consumption to change. With the extended mileage between oil changes that manufacturers have opted for, it’s very likely the car will call for additional oil between scheduled service intervals. Most independent shops consider the extended mileage range between oil changes too extreme and simply a marketing gimmick.

If your 911 calls for additional oil, here’s what to do:

• Ideally, the engine should be at operating temperature
• The difference between the minimum and maximum reading is approx. 1 quart
• Do not add more than 1 quart at a time
• Remeasure the oil level after each quart added
• After adding a quart, drive the car for 5 to 10 mins before rechecking the level
• Oil reading is not instant and requires a drive cycle

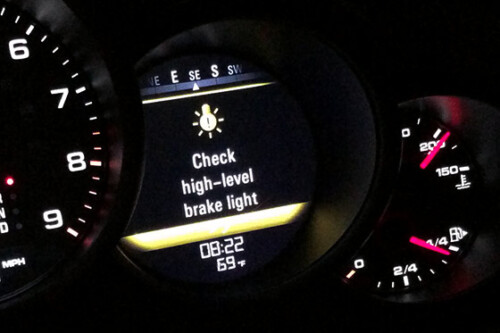

Symptoms: Intermittent check high level brake light message in display

The Porsche 911 991 models often have an issue with the high level brake light in the rear spoiler. Frustratingly, this message can come and go seemingly at will. Typically you’ll see this message at higher speeds and then when you come to a stop and inspect the brake light it seems to be working and the dash message goes away.

Many owners have rushed out and replaced the brake light only to discover the problem remains after replacement. So, proceed with caution before diving into your wallet.

The root cause of this issue is often the wiring harness that supplies power to the brake light. The harness is routed around the spoiler lifting mechanism and moves as the spoiler is raised and lowered. There are two relatively low gauge wires that supply power and ground to the brake light.

The constant heating and cooling from the engine combined with the movement of the spoiler cause the wires to dry and break. Interestingly, the break usually only opens enough to cause the failure when the spoiler is raised.

The wires are carefully wrapped to protect them, so the break is not obvious without peeling the wrapping away from the wires. The break is often reconnected when the spoiler is lowered – this is why the fault message is intermittent. The break can be inside the wire and well hidden, but in many cases, removing the wrapping reveals a clearly broken wire.

Now, if your handy, have the right gauge replacement wire, and suitable connectors, you can remake this portion of the harness easily. However, we recommend you use the skills of an independent Porsche specialist to correct this problem. In some cases replacing the wiring harness is necessary and the light unit itself can also fail. Check the wiring first.
